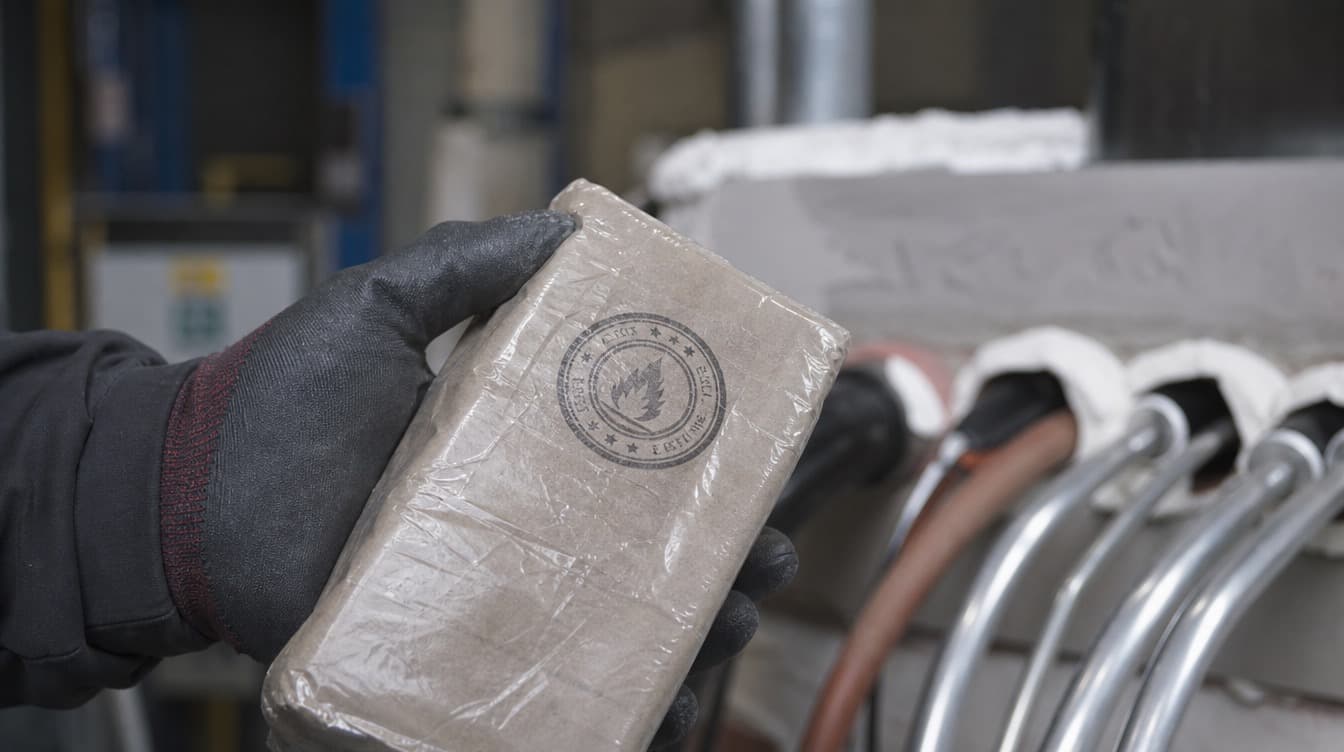

Fire Stopping Materials and Performance Ratings

Understanding Fire Stopping Materials

Performance, Compliance and Correct Selection in Passive Fire Protection

Fire stopping materials are a fundamental element of passive fire protection. Their primary purpose is to maintain the fire resistance of walls and floors by sealing gaps created by service penetrations, joints and openings.

When correctly specified and installed, fire stopping materials prevent the spread of fire and smoke, protect escape routes and support compliance with building regulations. This article explores the main types of fire stopping materials, their performance ratings and how to select the right solution for your project.

The Role of Fire Stopping in Passive Fire Protection

Passive fire protection is built into the structure of a building and works continuously, without human intervention. Fire stopping plays a critical role by:

Maintaining compartmentation

Limiting the spread of fire and smoke

Protecting structural elements and escape routes

Buying time for safe evacuation and firefighting

Any breach in a fire-resisting element must be correctly sealed to preserve the building’s fire strategy.

Types of Fire Stopping Materials

Different fire stopping materials are designed for different applications. Selecting the correct type depends on the penetration, substrate and fire performance requirement.

Fire Stopping Sealants

Fire stopping sealants are commonly used for sealing small gaps and service penetrations.

Key characteristics:

Flexible or semi-flexible to accommodate movement

Provide fire and smoke resistance

Compatible with a range of substrates

Typical uses include:

Cable and pipe penetrations

Linear joints

Gaps around frames and services

Correct depth, backing materials and installation method are essential to achieve the tested fire rating.

Fire Stopping Mortars

Fire stopping mortars are rigid systems typically used for larger openings or dense service penetrations.

Key characteristics:

High fire resistance performance

Strong, durable finish

Suitable for areas with minimal movement

Typical uses include:

Large service openings

Floor penetrations

Areas requiring robust mechanical protection

Mortars must be installed to the correct thickness and cured in line with manufacturer guidance.

Intumescent Products

Intumescent materials react to heat by expanding, sealing gaps created when combustible materials burn away.

Key characteristics:

Expand rapidly under fire conditions

Essential for combustible penetrations

Work in conjunction with surrounding fire-resisting elements

Typical uses include:

Plastic pipe penetrations

Fire door seals and glazing systems

Certain linear joint and service applications

Accurate positioning is critical to ensure effective expansion during a fire.

Understanding Fire Performance Ratings

Fire stopping materials are tested as part of complete systems and assigned fire resistance ratings.

These ratings indicate:

How long the system can resist fire exposure

Whether integrity and insulation are maintained

Suitability for wall or floor applications

It is essential that fire stopping solutions match the fire resistance rating of the element they are protecting.

Selecting the Right Fire Stopping Material

Choosing the correct material requires careful consideration of:

Type and size of penetration

Fire resistance period required

Wall or floor construction type

Presence of combustible services

Movement and environmental conditions

Crucially, fire stopping should always be installed as a tested system, not as a combination of unrelated products.

Common Causes of Fire Stopping Failure

Fire stopping failures are frequently identified during audits and inspections.

Common issues include:

Incorrect product selection

Inadequate installation depth or thickness

Mixing products outside tested systems

Damage caused by later service installations

These issues highlight the importance of competence, inspection and documentation.

Inspection, Verification and Record Keeping

Because fire stopping is often concealed, verification is essential.

Best practice includes:

Photographic evidence before and after installation

Clear location referencing

Product and system traceability

Re-inspection following alterations or maintenance works

Robust records support compliance, accountability and long-term building safety.

How DefendX Delivers Reliable Fire Stopping Solutions

At DefendX, fire stopping materials are specified and installed as part of fully tested, compliant systems.

Our approach includes:

Correct material selection based on fire strategy requirements

Competent installation by trained operatives

Photo-rich digital records for every penetration

Clear documentation to support audits and inspections

This ensures fire stopping measures perform as intended and remain verifiable throughout the building lifecycle.

Conclusion

Understanding fire stopping materials is essential for effective passive fire protection. From sealants and mortars to intumescent products, each material has a specific role and performance requirement.

When correctly selected, installed and documented, fire stopping materials protect lives, support regulatory compliance and strengthen the overall fire safety of a building.
